315A Automatic Tube Welder

Name: 315A Automatic Tube Welder
Brand: Hyzont
Price: 1 USD

Brand Name : Hyzont

Model Number : TTS-30

Certification : CCC

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 30 Set a Month

Packaging Details : Welding Head-- Flight Case 500*500*400/ Welding Power Source Wooden Case package

Name : Tube to Tube Sheet Welding Machine

Model : TTS-30

Tube OD : 12-76mm

Welding Cuttent : 315A

Type of Welding : TIG/GTAW

Input Power : 380V

Type of Connection : rotruding tube or Flush Tube

Welding Wire Dia(mm) : Φ0.8mm/Φ1.0mm

Contact Now

12-76mm Automatic Tube to tubesheet Welding Machine for boiler or heat exchanger

Model: TTS-30

Application:

We supply different models that can cover the size range of 12 to 76 mm OD.

These easy to operate weld heads improve productivity by increasing duty cycle, reducing repair rates and producing welds of consistent quality.

This tube to tubesheet head is designed to make tube-to-tubesheet welds precise and repeatable. These are orbital weld heads optimized for fusion and wire feed for GTAW tube welding applications.

An integral head-mounted feeder is standard.

This machine is widely applied in

Tublar Heat Exchanger tube welding
Boiler Tube to Tube Sheet Welding
Protruding tube Welding
Flus Tube Welding

Features

All position weld without welding wire feeding
Auto AVC control with on and off function for manual adjustments
Rugged, reliable tube-to tubesheet weld head suited for high-production applications
One-button operation, quick mount and dismount
Welding Continuous Welding Current and Plus Current Control

Specification

Model	TTS-30
Material	Carbon steel, Stainless Steel
Type of Connection	Protruding tube or Flush Tube
Welding Process	TIG/GTAW
Tube OD(mm)	19-76
Welding Torch Angle	0-30
Tungsten OD(mm)	1.6-2.4
Welding Wire Dia(mm)	Φ0.8mm/Φ1.0mm
Max wire feeding speed	2200mm/min
Swing Welding	Yes
Rotating	360 degree free rotated and Auto reset ;all position welding;
Rotation speed(rpm)	0.37-5.58 rpm
Protective Gas	Argon
Cooling	Water
Cable Length	6m
Main Dimension(mm)
Weight(kg)	9kg

Detailed Pictures

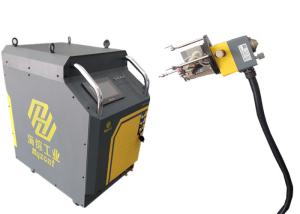

315A Automatic Tube Welder

TTS-30 Tube to Tubesheet Welding Machine Structure

Order information

Order Code	K-31580-P
Packing	Flight case
Packing Size	550500400mm
Packing Weight	15Kg + 130Kg (Welding Power Source OBT-315)
Delivery Time	15 Days after payment

TTP-30 Tube to tubesheet Welding Machine Youtube Video Link:

https://www.youtube.com/watch?v=Zy2-DhXAMAc
